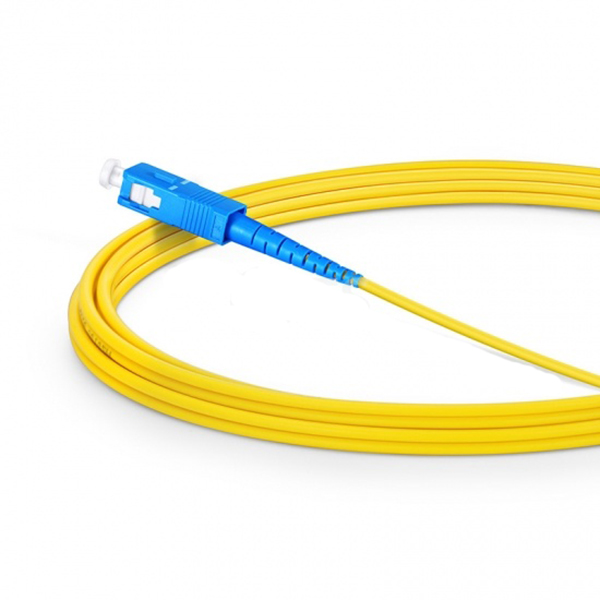

Optical patchcord SC/UPC-SC/UPC SM Simplex 3.0mm 3M

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

patchcord SA duplex SM 2.0 5

Optical fiber bending radius

  • G.657.A1 Bend Insensitive Fiber

    BIF Cable can be stapled and bent around corners without sacrificing performance.

  • 10mm Minimum Bend Radius

    The bend performance improves duct utilization, enabling smaller enclosures.

Diverse Telecom Applications

  • 1) LAN, WAN and Metro Networks

  • 2) FTTH project & FTTX Deployments

  • 3) CATV System

  • 4) GPON, EPON

  • 5) Fiber Optic Test Equipment

  • 6) Data-base Transmit Broadband Net

Technical Specifications

Connector Type SC UPC to SC APC Attenuation at 1310 nm 0.36 dB/km
Fiber Grade G.657.A1 (Compatible with G.652.D) Attenuation at 1550 nm 0.22 dB/km
Fiber Mode OS2 9/125μm Fiber Count Simplex
Wavelength 1310/1550nm Cable Diameter 2.0mm
Insertion Loss ≤0.3dB Cable Jacket PVC or LSZH
Return Loss ≥60dB Polarity A to A
Min. Bend Radius (Fiber Core) 10mm Operating Temperature -20~70°C
Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static) Storage Temperature



-40~80°C
