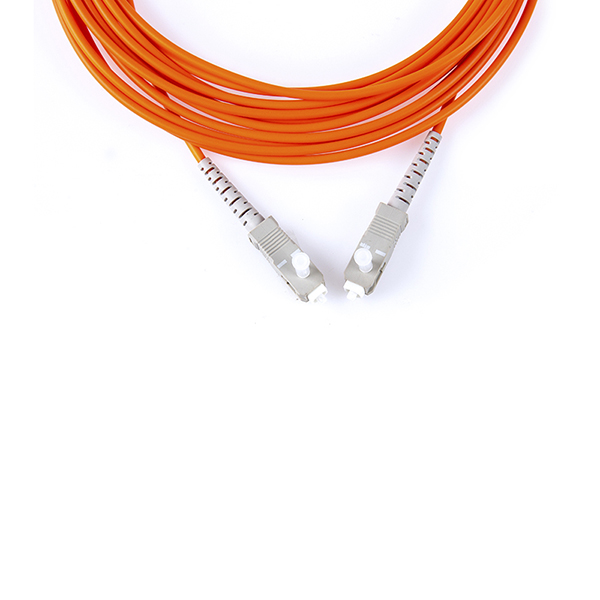

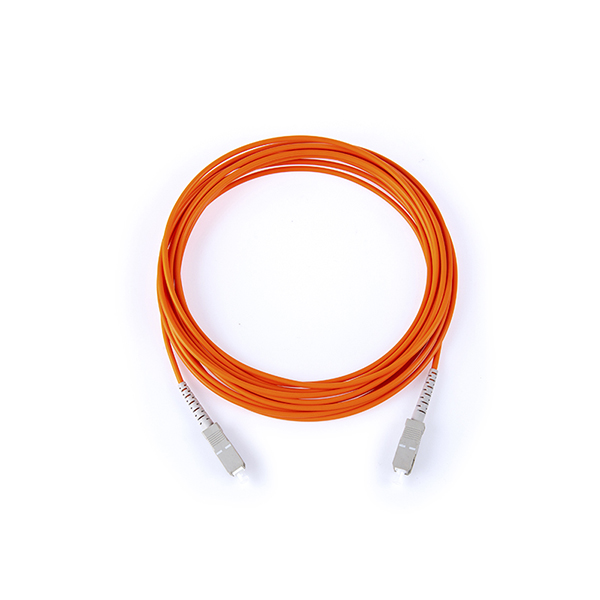

SC Duplex Multimode 50/125 (OM 1/2) Fiber Optic Patch Cable 10Gb

100% tested on optical performance (Insertion Loss Customer specified length & Return Loss) . Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request . Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH) . PC, UPC, APC connectors type available . High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU . Available in G652D, G657A, OM1, OM2, OM3 and OM4 . Position A/Position B markings . Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes

Request A Quote

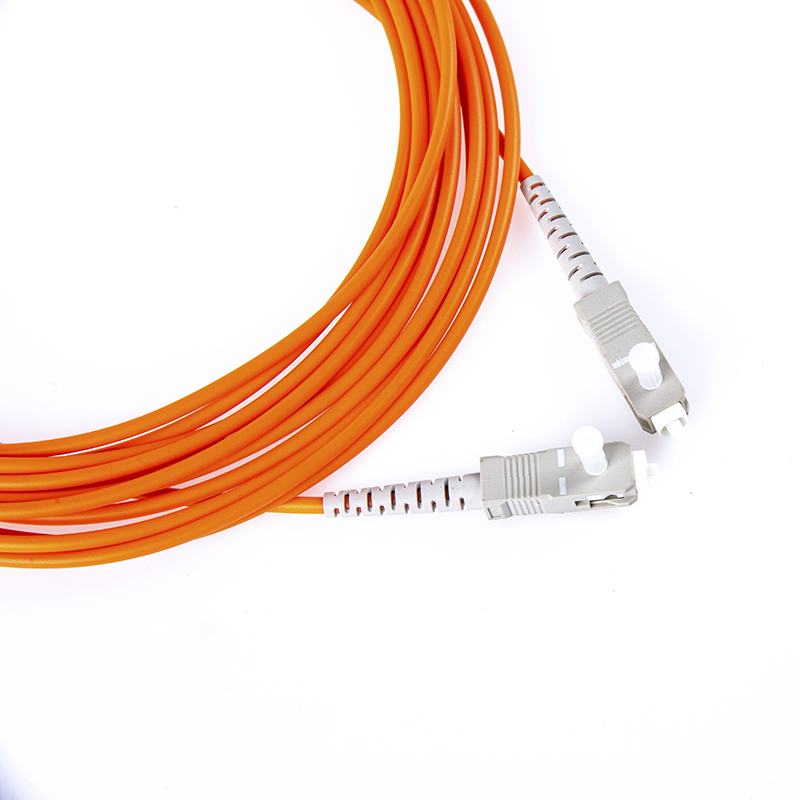

Fiber Optic Patch Cord6

Multi Mode Fiber Optic Patch Cord SC/UPC To SC/UPC Optical Patchcord

  • Carrier grade network jumper

    Widely used in communication room and link between optical transceiver and terminal box

  • High quality original parts

    Brand new original parts, high temperature resistant, environmentally friendly, durable, no deformation, no break, nofall off

  • High quality ceramic ferrule

    The product uses a new high-quality ceramic ferrule, the performance is stable and reliable

  • Low insertion loss

    With new materials and high standard production tecnology, the connector can be plugged and unplugged

Diverse Telecom Applications

  • Telecom network1 400X400

    Telecom network

  • data center 400x400 1

    Data center

  • FTTX 600x600 1

    Ethernet network

  • testing 400x400 1

    Testing machine

Technical Specifications

Connector Type SC UPC to SC UPC
Fiber Grade MM (OM1 or OM2)
Fiber Mode 62.5/125μm or 50/125μm
Wavelength 980/1300nm
Insertion Loss ≤0.2dB
Return Loss ≥30dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Simplex
Cable Diameter 3.0mm
Cable Jacket PVC
Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C
Storage Temperature



 -40~80°C
