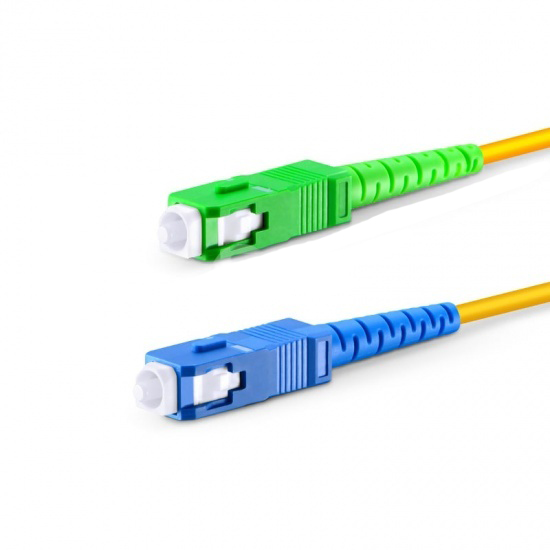

Optical patchcord SC/UPC-SC/APC-SM-PVC-3.0mm

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. SC/UPC to SC/APC connector is widely used.It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

FTTX 600x600 1

Optical fiber patchcord SC/UPC-SC/APC SM 3.0 PVC

  • G.652D Bend Insensitive Fiber & 10mm Min. Bend Radius

  • Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss

  • Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use

  • Compliant to IEC-61754 and TIA-604 (FOCIS)

Diverse Telecom Applications

  • Telecom network1 400X400

    LAN, WAN and Metro Networks

  • data center 400x400 1

    FTTH project & FTTX Deployments

  • FTTX 600x600 1

    CATV System

  • Ethernet network

    GPON, EPON

Technical Specifications

Connector Type SC/UPC to SC/APC
Fiber Grade G.652.D(Compatible with G.657.A1 or G657A2)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Insertion Loss ≤0.3dB
Return Loss ≥60dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Simplex
Cable Diameter 3.0mm
Cable Jacket PVC
Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C
Storage Temperature



-40~80°C
