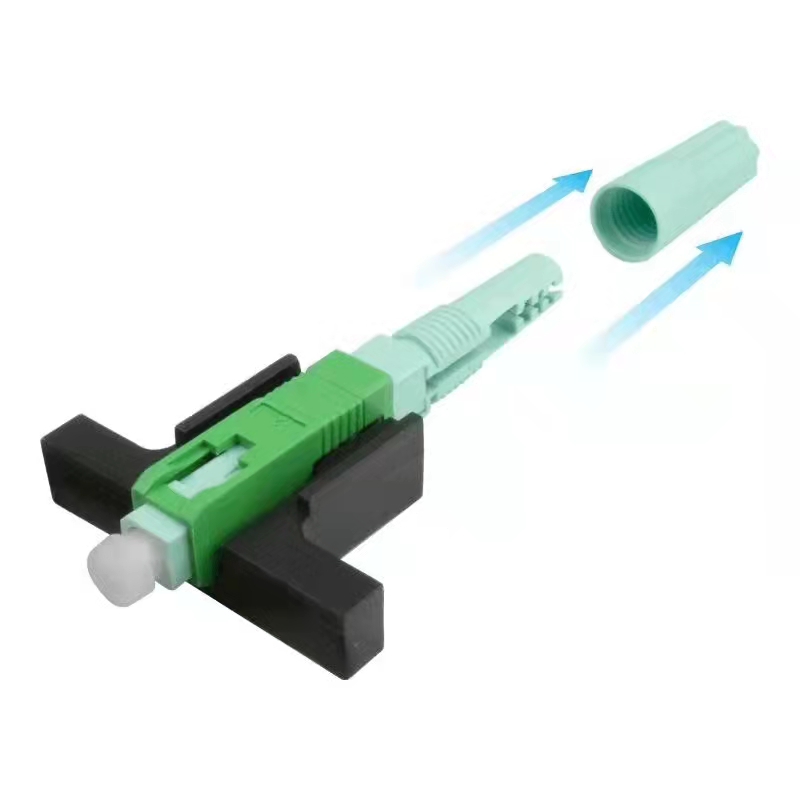

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
| Category |
Specification |
||
| Aoolicable for |
Drop cable.Indoor cable |
|
|
| Fiber mode |
Single mode or Multi mode |
|
|
| Operation time |
S |
About 50(no fiber cut) |
|
| Insertion Loss |
dB |
≤0.3 |
|
| Insertion Loss Typical value |
dB |
0.3 |
|
| Return Loss |
dB |
≥50 |
|
| Fastening strength of naked fiber |
N |
≥5 |
|
| Tensile strength |
N |
≥50 |
|
| Reusable |
Time |
≥10 times |
|
| Operating Temperature |
℃ |
-40~+85 |
|
| On-line tensile strength(20N) |
dB |
ΔIL≤0.3 |
|
| Mechanical durability(500 times) |
dB |
ΔIL≤0.3 |
|
| Drop-off test(drop-off height4m,once per direction,totally 3 times) |
dB |
ΔIL≤0.3 |
|
