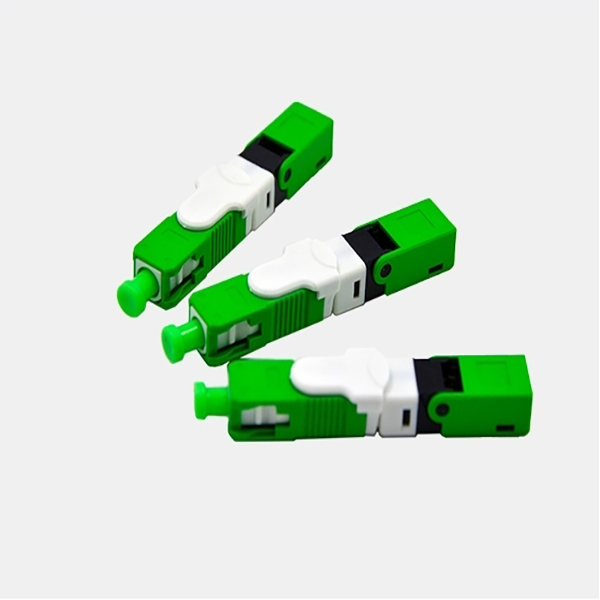

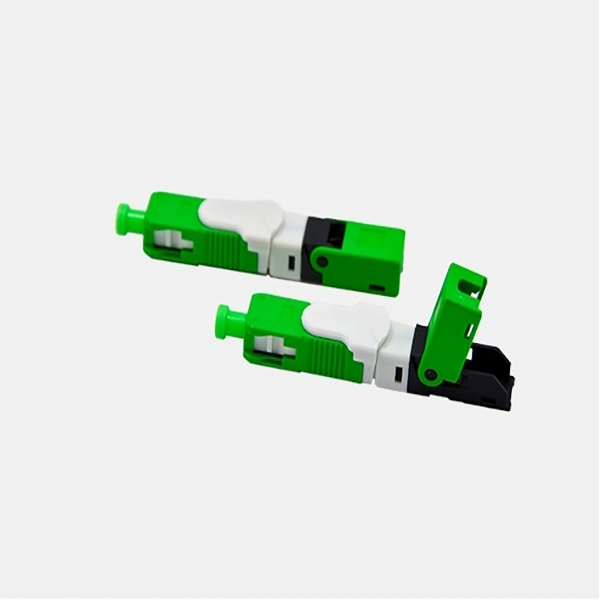

Fast connector SC/APC-B,simplex

QDAPT SC/APC fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.  Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

FTTX

Its advantages are complete cutting, precise alignment, elastic mount, reliable fastening, etc., can make the signal low loss

  • The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering

  • The structure base on unique box-building crimping technology

  • Presenting the Bending fiber prevent the cable from dragging

  • Integrated protection of the casing to withstand harsh indoor environment

Diverse Telecom Applications

  • FTTH, optical fiber room line reconstruction

  • CATV,Telecommunication networks

  • Metro network,Local Area Network (LAN)

  • Date processing networks

Technical Specifications

Fiber Type SM
Surface polishing SC/APC
Color Green
insertion loss ≤0.3dB
return loss ≥60dB
joint endurance 10Times
Material of shell ABS
Applications 2.0mm×3.0mm&2.0mm×1.6mm or FTTH patch cord
Fiber Diameter 125um
Tensile Strength ≥20N
Lock Strength ≥20N
Temperature Cycle ≤0.3dB
Virbration ≤0.2dB
Temperature -40℃~+80℃
