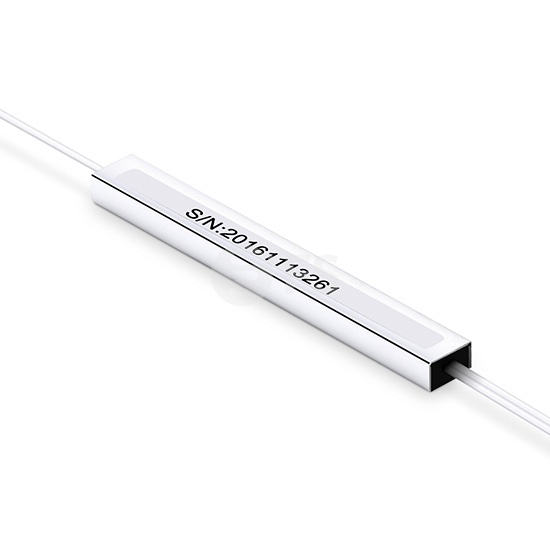

PLC splitter steeless tube SC/APC 1X2

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Request A Quote

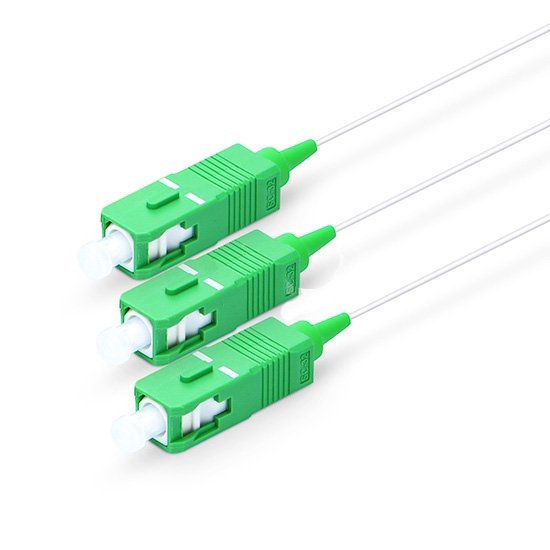

1x8 Splitting, SC/APC Connector

Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity.
Excellent Quality Chips

Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths.
Compact Structure

Small size, it can be directly installed in a variety of transfer box and just take up little space.
Exquisite Packaging

The design and packaging is exquisite to ensure the product in good condition.

Technical Specifications

Parameter	Unit	Specification
Operating Wavelength	nm	1260 ~ 1650
Type		1×2	1×4	1×6	1×8	1×12	1×16	1×24	1×32	1×64
Insertion Loss	dB	≤3.8	≤7.4	≤8.8	≤10.5	≤12.9	≤13.5	≤15.1	≤16.8	≤20.5
Uniformity	dB	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.5	≤2.0
PDL	dB	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4
Directivity	dB	≥55
Return Loss	dB	≥55
Operating Temperature	°C	-10~ +75
Storage Temperature	°C	-40 ~ +85
Fiber length	m	1m or custom length
Fiber Type	/	Corning G.657A1/G.657A2
Power Handling	mW	300
Note：2xN，the IL plus 0.2dB.
