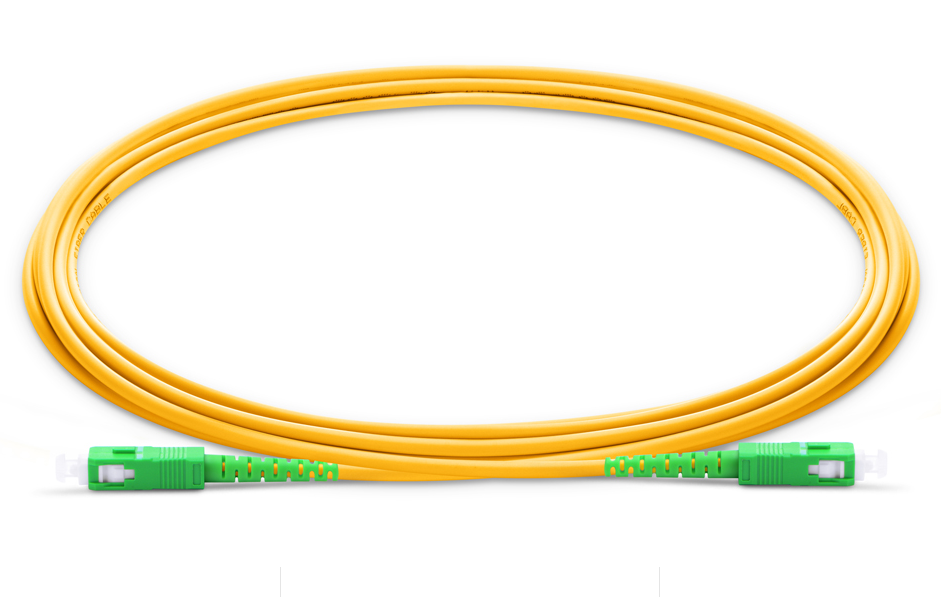

• SASA 2.0 SM

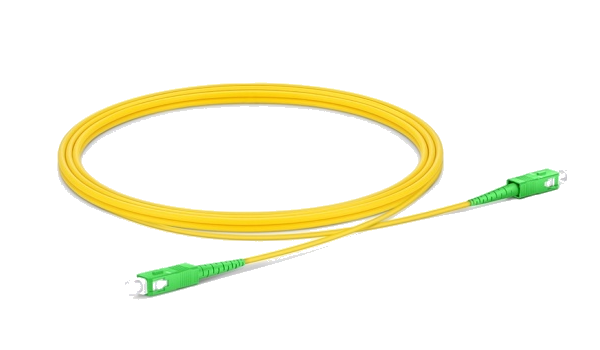

  • SASA 2.0 SM 600X350 11
  • SASA 2.0 SM
  • SASA 2.0 SM 600X350 11

Optical patchcord SC/APC 2.0 SM

The fiber optic connector precisely connects the two end faces of the fiber. The most important thing is to align the axes of the two fibers so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent. The impact on the system is minimized due to its involvement in the optical link.

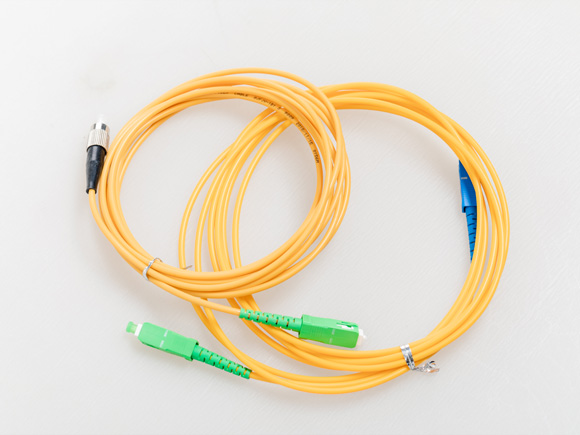

p04 1 s03 img2

  • Low insertion loss, and High reliability

  • High return loss and Good repeatability

  • High strength of pull and push

  • Wide wavelength range

Technical Specifications

Item Unit Data
Name Patchcord-FCUPC-FCUPC-SX-G652D-PVC -2.0-Length
PN APT-TX-FCUPC-FCUPC-DX-D2-PVC-2.0-Length
Fiber Type   G652D/G657A1/G657A2
Output meterial   PVC/LSZH
Wavelength nm 1310/1550
Insertion loss dB ≤0.3
Return loss dB ≥50(PC,UPC);≥60(APC)
Repeatable dB ≤0.1
Plug times S ≥1000
interchangeability   ≤0.2
tensile strength



N ≥50
Working Temp. -40~75
Storage Temp. -40~85
